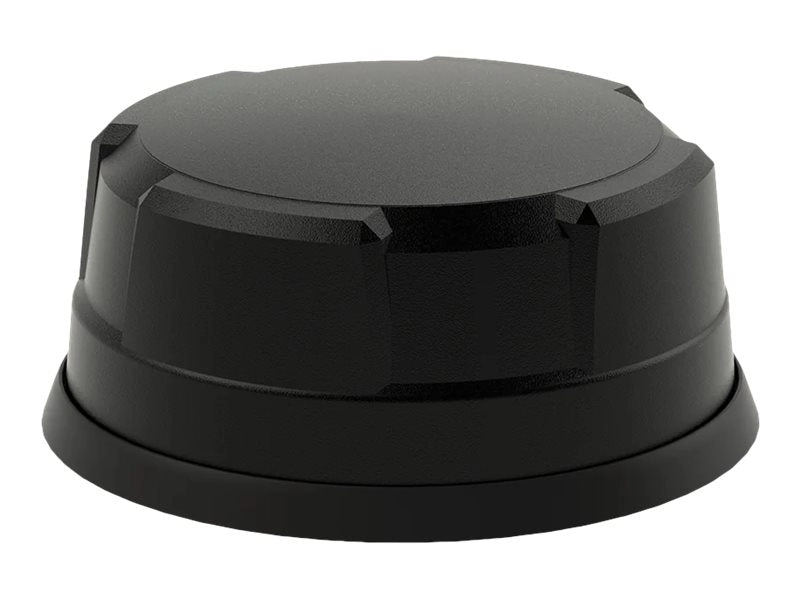

Panorama Antennas MAKO 5G L[G]M[H]M4[B]-6-60[-24-58] - Antenna - dome - navigation, cellular, Wi-Fi - omni-directional - panel mountable, magnetic mountable

• Robust omnidirectional connectivity
  This antenna offers excellent directivity with omnidirectional capabilities, allowing for consistent signal reception from all directions.
• Durable construction
  Built with flame-retardant materials, the MAKO 5G is engineered for safety and longevity.
• High performance specifications
  The MAKO 5G features a maximum power of 10 watts and supports diverse frequency ranges from 617 to 6000 MHz.
• Enhanced installation flexibility
  The design allows for both magnetic and panel mounting, making it adaptable for different installation scenarios.

The MAKO 5G Dome is a range of high-performance 4×4 MiMo antennas covering 617-960/1710-6000MHz. The MAKO 5G Dome consists of up to 11 elements; four isolated high-performance antenna elements covering 617-960/1710-6000MHz offer MiMo/Diversity at cellular/LTE frequencies. None of the antennas in this range require a metallic ground plane, and all maintain a high level of performance even when mounted on non-metallic surfaces.
Although the LTE elements are designed for 4×4 MiMo operation, it is possible to utilize these as 2 pairs of 2×2 MiMo for a router that has 2 SIMS (radio) in a failover configuration. As this configuration is using only 2 out of the 4 antennas for a single SIM, the network coverage should be checked to ensure that this use is suitable.

• Designed for LTE Cat 18/20 routers and devices
• Low profile antenna with up to 11 functions in 1
• 4×4 MiMo 4G/5G LTE cellular
• Flame retardant cables compliant to UNECE R118
• Pre-terminated antenna connectors fitted as standard
• Cable flags attached for easy cable identification and installation
